Axis electronic lock solutions minimize management, enhance personal storage, and secure belongings with ease.



Body Style

Finish | Brushed Nickel : Black
Standard finishes of brushed nickel and black. Custom finishes are available upon request

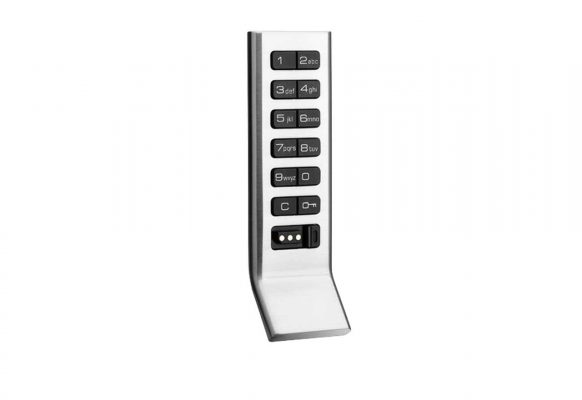

Body | Standard : Vertical : Horizontal
Available in standard, vertical, and horizontal body styles with or without pull handle


Interface

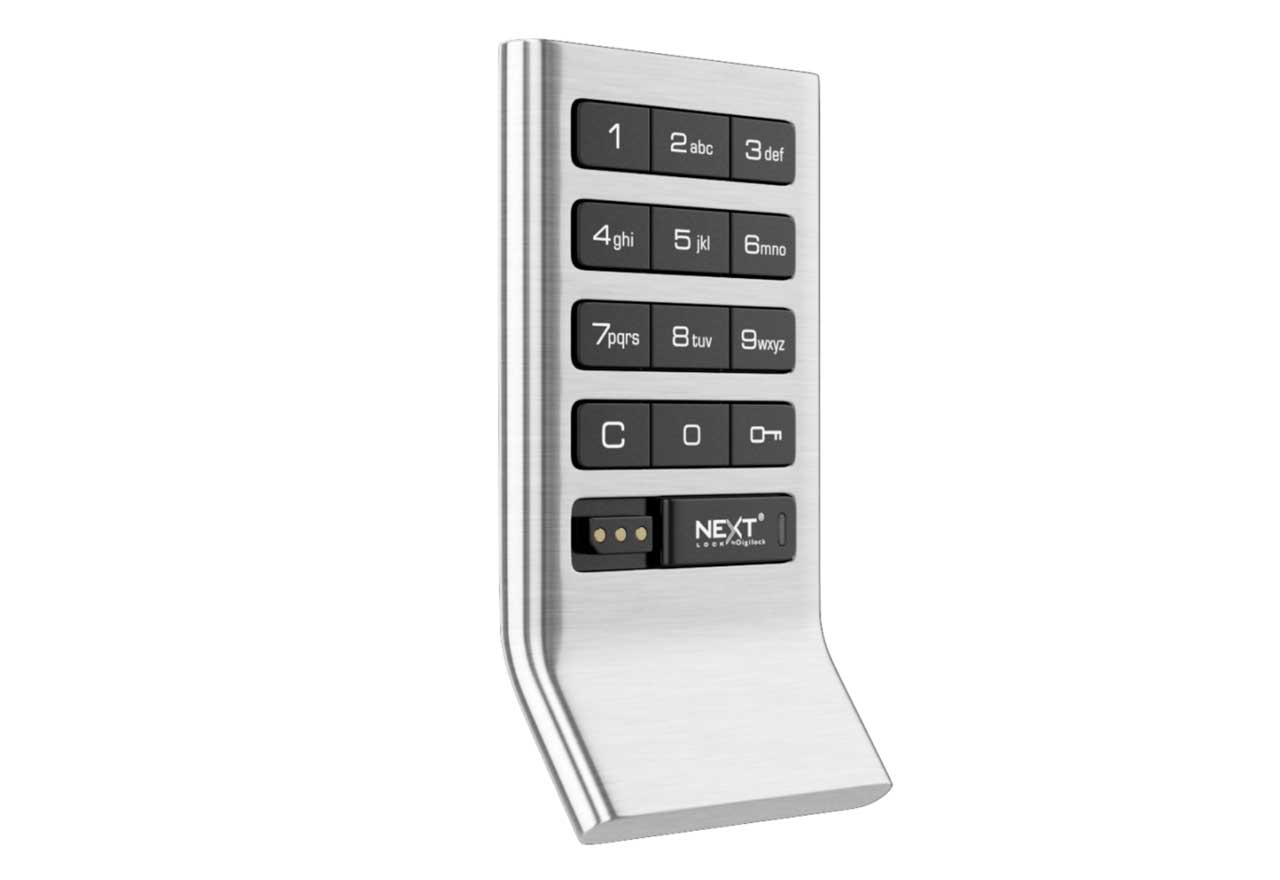

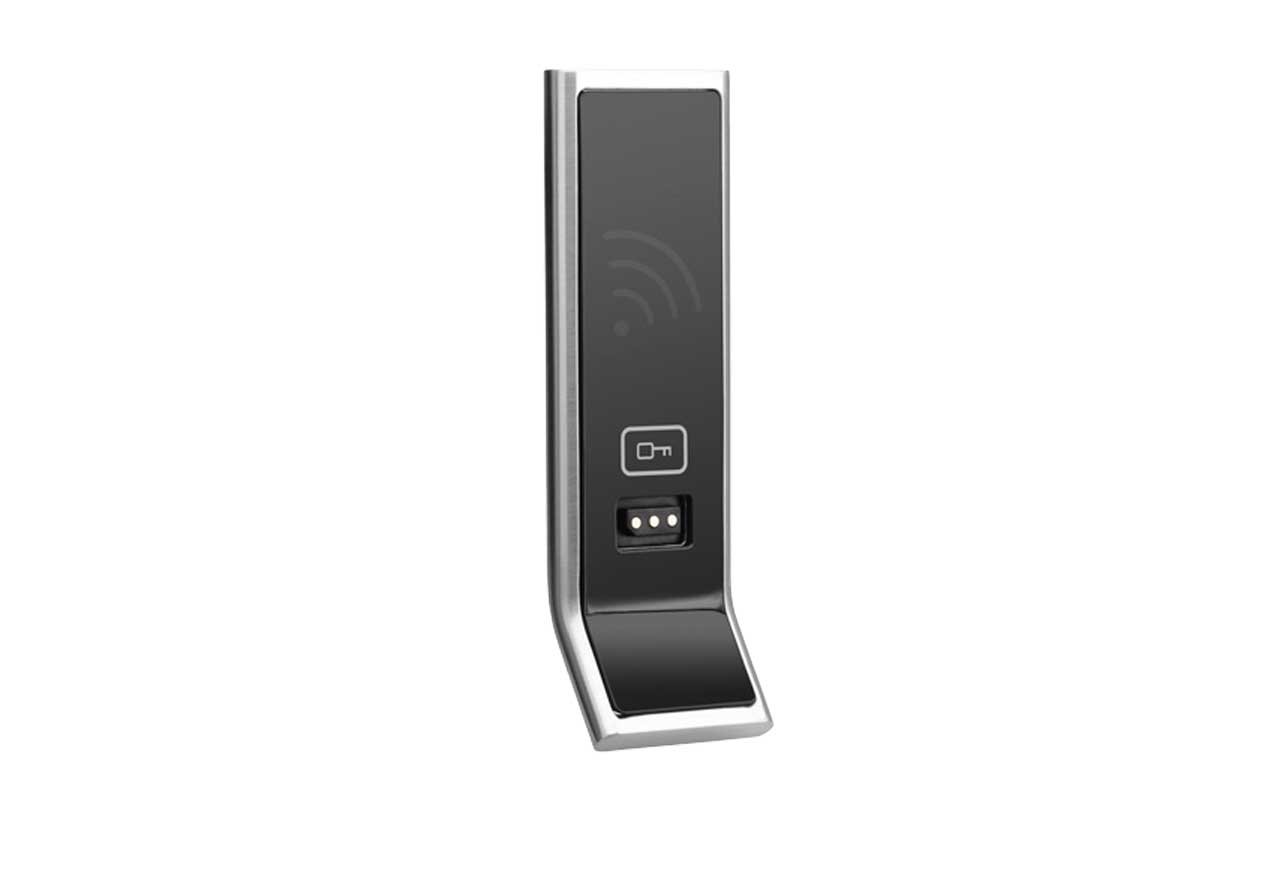

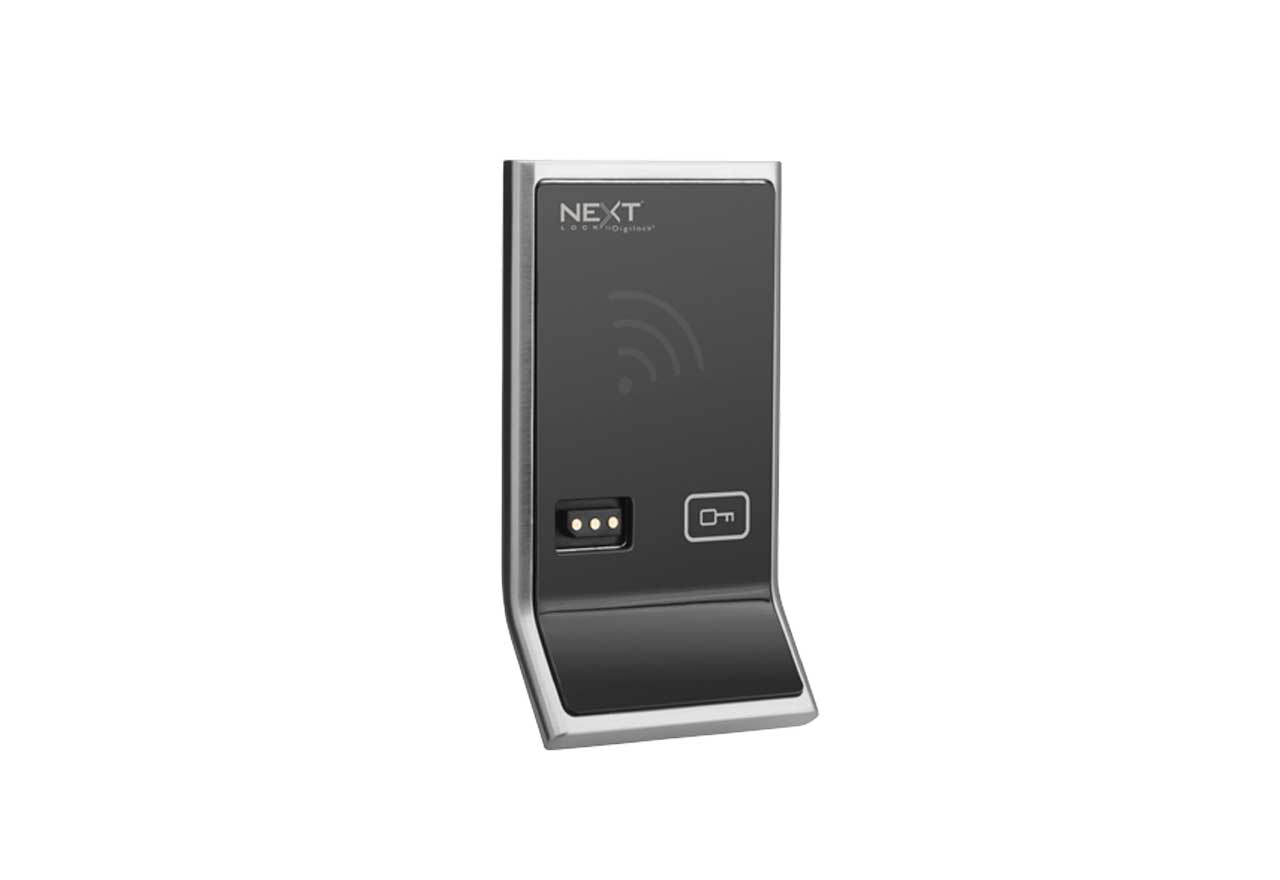

Standard Keypad : RFID
Axis locks operate with an alphanumeric standard keypad or touch RFID interface. The interface also contains a key slot to operate locks with an ADA compliant User Key.

Power | 4 AA Batteries
Providing battery life of 128,000 cycles for Keypad & 54,000 cycles for RFID.*
*Based on average usage.

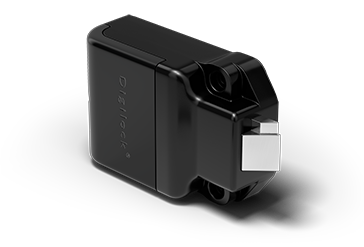

Deadbolt

Rear Unit
Features a 1/2” (12.7mm) motorized deadbolt designed for shared use functionality.

Shared Use
In shared use functionality, the locks are designed for day-use lockers. The user chooses an available locker and operates it with a self-selected user credential. Once the locker is vacated, it becomes available for a different user.

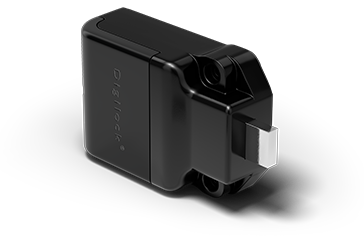

Deadlatch

Rear Unit
Features a 1/2” (12.7mm) motorized deadlatch designed for assigned use functionality.

Assigned Use
In assigned use functionality, the locks are designed for lockers that are for private use. The user is assigned a locker and operates it with their assigned user credential.


Key Management

Patented electronic keys offer external power, audit, and override capabilities for a credible management system that significantly enhances productivity and reduces cost.


Lock Management

Axis locks have an option to program and manage the locks through a mobile device. The mobile app allows simplified programming, management, and audit trail.



Downloads

File Description File size Downloads
pdf nl_catalog-18154d572b7bac3453c6b4d9d2e3f065 13 MB 1397
